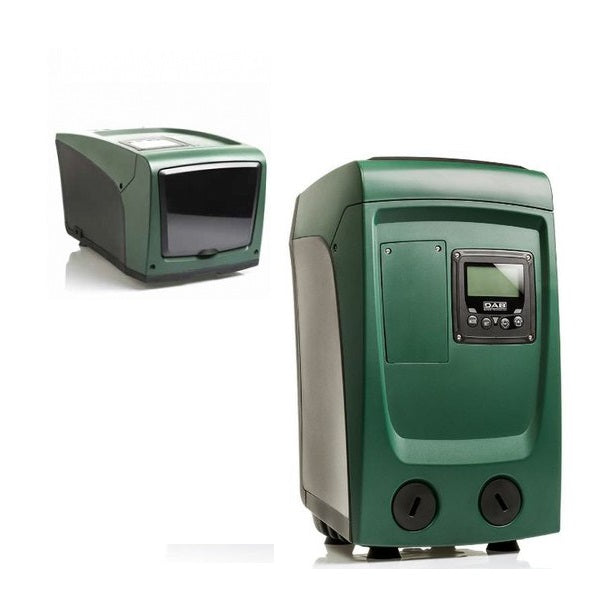

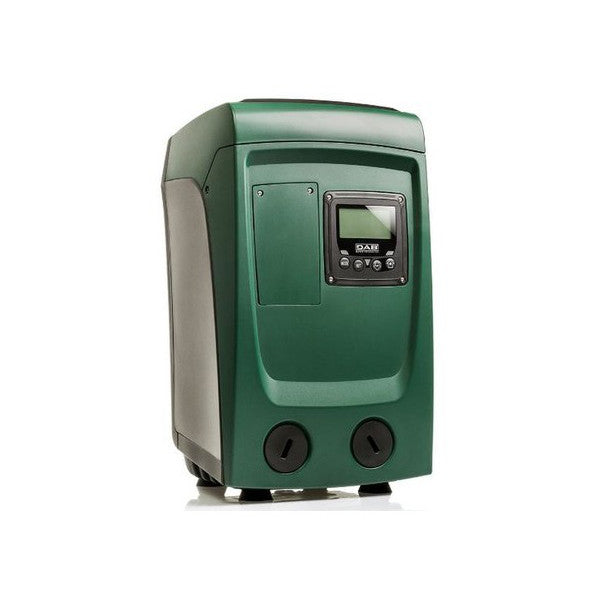

DAB E.Sybox Mini 3 Pump

The DAB Esybox Mini 3 electronic cold water booster pump is a WRAS-approved, all-in-one solution for water pressure boosting. Designed for domestic applications, it effectively increases pressure for bathroom taps, showers, garden taps, and rainwater harvesting systems.

This self-priming, multi-stage pump offers exceptional versatility, with the ability to be installed vertically, horizontally, or wall-mounted—making it suitable for a variety of spaces. Its thoughtful design includes a removable protective door, providing easy access to the air vessel loading valve and non-return valve for hassle-free maintenance. Additionally, the large, intuitive display allows for quick and simple adjustments as needed.

The DAB Esybox Mini 3 is an advanced, self-priming, multi-stage pump designed for domestic water pressure boosting.

Key Features:

Perfect for Domestic Use: Ideal for boosting water pressure throughout your home.

New Three-Rotor Model: Enhances noise reduction and optimizes energy consumption for improved performance.

Wireless Software Updates: Stay up to date with the latest features and improvements.

Inverter Technology: Automatically adjusts energy usage based on water demand, ensuring efficiency.

High-Resolution LCD Display: Orientable for easy viewing and control.

Integrated Expansion Vessel: Includes a one-litre capacity for seamless operation.

Easy Maintenance: Provides simple access to the air vessel loading valve and non-return valve.

Versatile Installation: Can be placed vertically, horizontally, or wall-mounted to fit virtually anywhere in the home.

Whisper-Quiet Operation: At just 45dB(A) at one metre, it’s the quietest booster pump in its class.

Specifications:

• Maximum Working Pressure: 5.5 bar
• Maximum Flow Rate: 80 litres per minute
• Maximum Head: 55m
• Maximum Suction Depth: 8m
• Dimensions: 439mm x 263mm x 236mm

Note: This pump cannot connect directly to a mains water supply; it must be connected to a suitable break tank.
